    Fabric Hydrostatic Head Pressure Test Machine Hydrostatic Pressure Test Equipment

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-W825
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 30 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Fabric Hydrostatic Head Pressure Test Machine Hydrostatic Pressure Test Equipment

    Fabric Hydrostatic Head Pressure Test Machine Hydrostatic Pressure Test Equipment


    Testing standard:


    AATCC 127 DIN 53886 JIS L1092 EN ISO 20811 ISO 811


    Application:


    Fabric Hydrostatic Pressure Tester can be used for testing the water permeability resistance to the compact cloth such as canvas, linoleum, tenting, tarpaulin, non-woven fabrics, rain resistant dress fabrics, coating fabrics and so on.


    hydrostatic pressure testing machinehydrostatic pressure testing machinehydrostatic pressure testing machine


    Advantages:

    1. Speciality in testing equipment.

    2. Various products to choose from.

    3. Accept customization.

    4. Excellent after-sale service.


    Technical parameters:


    Technical IndexHD-W825
    Measuring range500pa-200kpa
    Water pressure rise rate10 or 60 cmH2O/min
    Accuracy0.2%FS
    UnitcmH2O, Pa, kPa, mmHg, mmH2O, PSI, Bar (optional)
    Sample chuck area100cm²
    Water tank capacity3.7Ld
    Extarnal Dimensions600x460x680mm
    Weight50kg
    Power source1phase, AC220± 10%, 50 Hz
    Test methodsBoost test, Constant pressure timing test, Water leakage test, Deflection test

    Accessories:


    Standard accessories1Set100cm2 testing sets
    1SetCalibration plate
    1pcRubber ring
    1pcPower line
    Optional accessoriesOptionalFixtures of other testing area

    Feature:

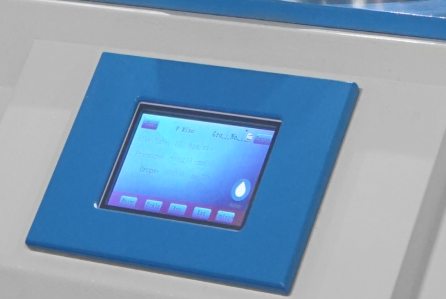

    1. Touch screen control with English menu

    2. Seven test units can be switched,Pa, kPa, mmHg, mmH2O, cmH2O, PSI, Bar

    3. Five working modes: Pressurization, constant pressure and constant timing, constant pressure timing, water seepage and leakage, deflection test

    4. Built-in LED lighting device for easy observation. The water drop recording button, which can record multiple water drop pressure results

    5. Built-in thermal printer


    Application Industries:



    Canvas Coated fabrics Non-woven fabrics



    Rain-proof Fabrics hood fabric Geotextiles


    About us


    Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
