    GB/T5456-2009 Vertical Flame Tester Flammability Testing Machine For Fabric 26mm

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-W821
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 30 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

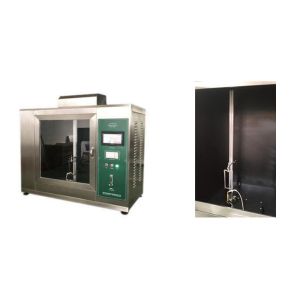

    GB/T5456-2009 Vertical Flame Tester Flammability Testing Machine For Fabric 26mm

    GB/T5456-2009 Vertical Flame Tester Flammability Testing Machine For Fabric 26mm


    Test standard


    GB / T5456-2009,ISO6941 : 2003


    Technical parameters


    Technical IndexHD-W821
    Control method7-inch color touch screen, can set and display ignition time and flame spread time
    Machine size410mm(W) X 900mm(H) X 380mm(D)
    Ignition time0 ~ 999.9s can be set
    Flame spread time0 ~ 999.9s can be set
    Flame angle30 º& 90°
    Flame size

    Inner diameter of blowtorch tube: Ø6mm

    The inner diameter of the fire nozzle is Ø1.7mm, evenly distributed 8 Ø0.9mm holes

    Combustion gasThe combustion gas uses industrial propane or butane gas
    Sample holderComposed of a rectangular metal frame, the rectangular frame is 560mm long and 150mm wide. It is equipped with 12 sample fixing pins. The distance between the sample fixing pins and the bottom of the frame is 5mm, 10mm, 190mm, 370mm, 550mm and 555mm. The length is at least 26mm. The test plane frame is at least 20mm, and a positioning cylinder with a diameter of 2mm and a length of at least 20mm is installed near each fixed pin.
    WeightApprox 36KG
    VoltageAC220V, 50Hz

    Application


    Vertical Flame Tester is suitable for the measurement of limited flame spread properties of Protective clothing.. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.​


    Company Introduction:


    HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 16 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.


    FAQ


    How to install and use the product?

    The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


    How about the packing for machine, is it safely protected during transportation?
    Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


    What is the order process?
    Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
