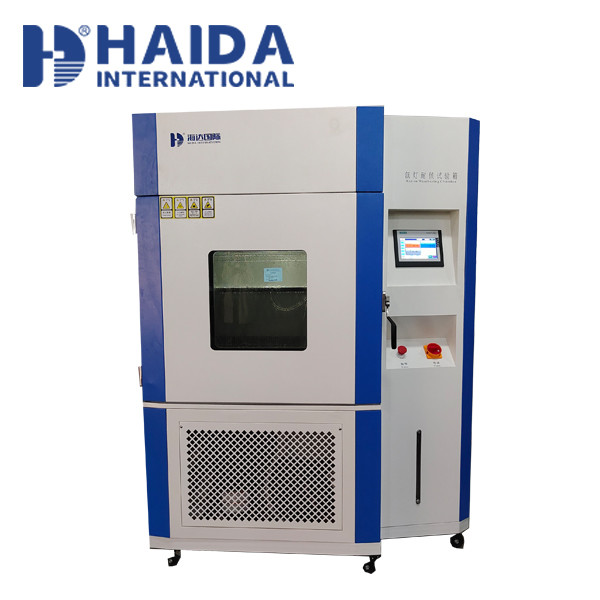

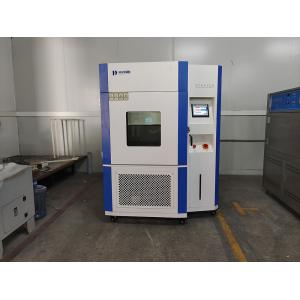

Electronic Textile Testing Air Cooling Light Fastness Tester
general specifications
Package size: (W x D x H) 1280×1150×2200mm
Power supply: AC380V±10%, 50/60Hz (can be specified)
Gross weight: 400kg
introduce
This machine is designed to meet the requirements of ISO 105 B02
and AATCC Test Method 16 standards. It has a rotating sample holder
that allows precise control of key test parameters including
spectrum, irradiance, relative humidity, chamber temperature and
black standard temperature.
usage
Determines the fading resistance of textile colors when exposed to
artificial light (xenon arc lamps) representative of natural
sunlight.
Testing standards
ISO 105-B02 Textiles -- Tests for color fastness -- Part B02: Color
fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04 Textiles -- Tests for color fastness -- Part B04: Color
fastness to artificial weathering: Xenon arc fading lamp test
AATCC TM 16 – Option 3 Colorfastness to Light: Xenon-Arc
Introduction
Color
fastness testing equipment designed to meet the requirements of ISO 105 B02/B04/B06 and AATCC
Test Method 16 standards. The Light & Xenon Test Chamber, to
determine the color fastness, aging resistance of textiles,
plastics, rubber products or materials by objecting to the
simulated conditions of nature weather (daylight, rain, temperature
and humidity, etc.).
Air Cooling Light fastness tester is also called xenon arc test
chamber since it adopts a air-cooled long-arc-xenon lamp and rack
sprays to provide both light and dark cycles and nature weather
conditions. Due to its final testing purpose is to check the color
fading features, people also name it as Fadeometer.
Technical parameters
| Internal Dimension (W*D*H) | 600×600×800 |
| External Dimension (W*D*H) | 1220×1100×2100 |
| performance indicators | Chamber temperature | 10～95℃ |
| Temperature accuracy | ±5℃ |
| Black panel temperature | 30～110℃ |
| Chamber humidity range | 15％RH～85％RH |
| Humidity accuracy | ±5％RH |
| Irradiance Range | 420nm |
| Irradiance strength | 0.55～1.3W/m2 |
| Irradiance accuracy | ±0.03W/m2/ |
| Xenon lamp power | 2500W air-cooled xenon arc lamp (recommend replacing lamps every
1200 hours) |
| Rack rotating speed | 5r/min |
| Test Positions | 10 pieces of 145x 45mm, 5 pieces of 145x 75mm |
| Exposure Area of each Test Position | ISO 65.25cm² (145 x 45) mm AATCC 108.75cm² (145 x 75) mm |
| operation control system | water spray system | The water spray time can be set in 999 minutes, and the spray stop
time can be set in 999 minutes |
| Accuracy range | Setting/indication accuracy: temperature 0.1℃, humidity 1%RH |
| Temperature and humidity sensor | Platinum resistance.PT100Ω/MV |
| Heating system | Fully independent system, nickel-chromium alloy electric heating
heater |
| humidification system | External isolation, all stainless steel shallow surface evaporative
humidifier |
| blackboard temperature | Bimetal Blackboard Thermometer |
| circulatory system | Temperature-resistant and low-noise air-conditioning motor.
Multi-blade centrifugal fan |
| material | Internal chamber material | High-quality carbon steel plate, phosphating electrostatic spray
treatment / stainless steel matte line hairline treatment |
| External chamber material | SUS 304 # Stainless Steel, anti-rust |
| Sample holder material | SUS 304 # Stainless Steel, anti-rust |
| Standard accessories | radiation-proof glass windows-1 set, Xenon lamp-1 PC |
| safety protection | Leakage, short circuit, over temperature, water shortage, motor
overheating, overcurrent protection |
| Power supply | AC380V±10％ 50±0.5Hz,13W |
Features
1. Light intensity set digitally, real-time monitoring,
automatically adjust to meet the different standards required for
testing the stability of light source (420nm as standard,optional
340nm or 300 ~ 400nm or 300～800nm band monitoring)
2.Blackboard Thermometer (BPT), the Standard Blackboard Thermometer
(BST), Irradiance detector and samples placed in the same position,
a true reflection of the sample under test conditions, the data
displayed as figures, charts, curves on the large color screen, no
need to stop for observation.
3. Large colorful display, a variety of test monitoring modes
(animation, digital, graphics) operate easily and clearly.
4. Sample holders can be timed independently to achieve different
tests simultaneity in the same machine
5. Equipped with air-cooled rated 2500W arc-xenon- lamp, truly
simulates the daylight spectrum.
6. Professional air circulation system, reduce operating costs.
7. Industrial temperature control (cooling) system offers quickly
and smoothly control
8. Ultrasonic humidifier, professional dehumidification system to
ensure accurate and stable humidity conditions.
9. Equipped with self-circulation system and air filtration system,
significantly reducing the environmental requirements.
10.Quality assurance of 1000 hours continuous running.7. Refined
software which perfectly reflects the needs of the operator.
